netH2O POD — Modular Sensor nodes
netH2O POD — Modular Sensor nodes
Couldn't load pickup availability
Contact us through the web contact widget if you need information, customization or pricing for special applications or volume purchases, or if the standard purchase process does not work for you for any reason.
€850 per pod, with a built-in temperature sensor.

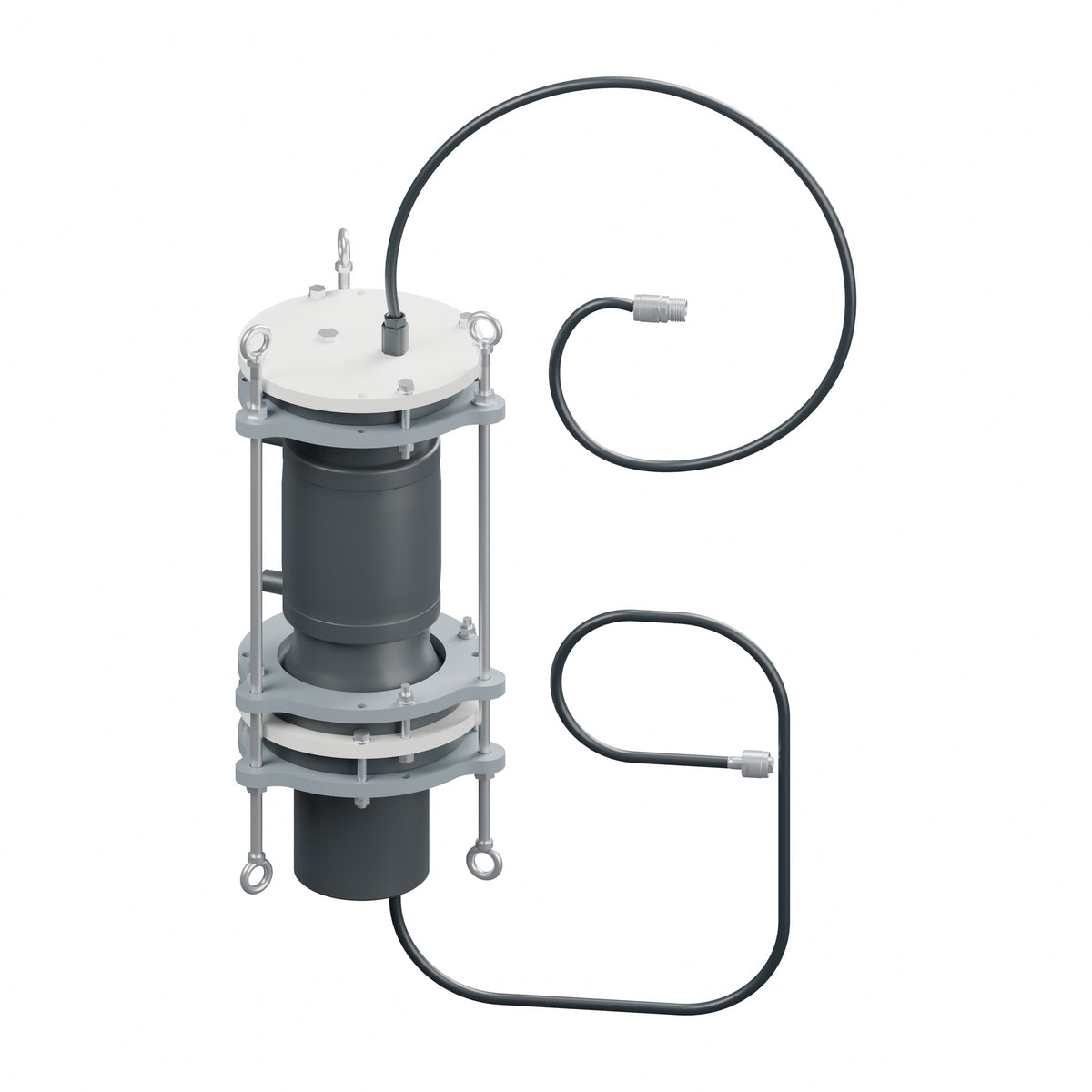

The netH2O POD is a modular sensor node, usable for open water deployments with the B200-5 buoy. Each pod measures water temperature and can be equipped with any sensor from the available netH₂O sensor packs.
Build your vertical sensor string
Combine pods in a vertical string, with up to 2 m between adjacent pods. Choose the number of pods and their positions to measure temperature and other water-quality parameters at different depths.
Power and data pass along the string through the upper and lower cable connections. Three support ropes carry the suspension load, while a hood below each pod provides protection for the sensors and cables.
For open water deployments, mooring should be provided with two lateral lines, keeping the water beneath the buoy clear of obstacles that may interfere with the POD string.
Specifications
| Price | €850 per pod |
|---|---|
| Included sensor | Built-in water temperature sensor |
| Optional sensors | Any sensor from the available netH₂O sensor packs |
| Arrangement | Vertical strings of individually sold pods |
| Maximum spacing | 2 m between adjacent pods |
| Maximum depth with standard sensor packs | 20 m |
| Open water deployments | Usable with the B200-5 buoy, sold separately |
| Power and data | 12 V power; RS485 data connection |
The pressure rating depends on the installed sensor pack. Standard sensor packs support operation down to a maximum depth of 20 m.
Available sensor packs
Choose sensors for your application from these packs, sold separately:
- Dissolved Oxygen (DO)
- Conductivity / Salinity (CS)
- Chlorophyll-a (CHL)
- Turbidity (Turb)
- Cyanobacteria (CYANO)
The buoy, optional sensor packs, extension cables and lateral mooring are separate. For information or a specific configuration, use the web contact widget.

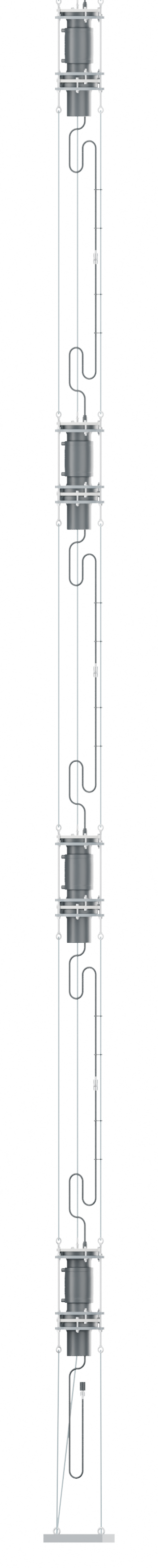

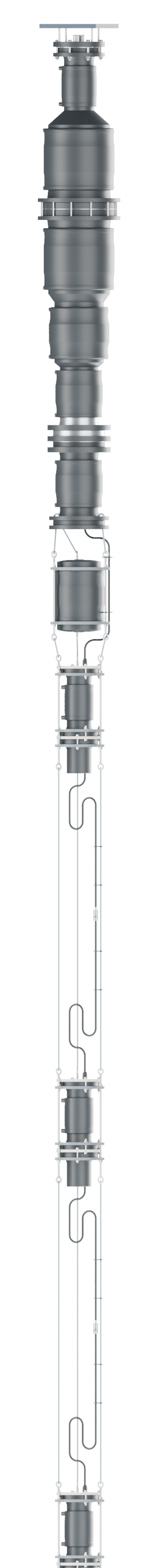

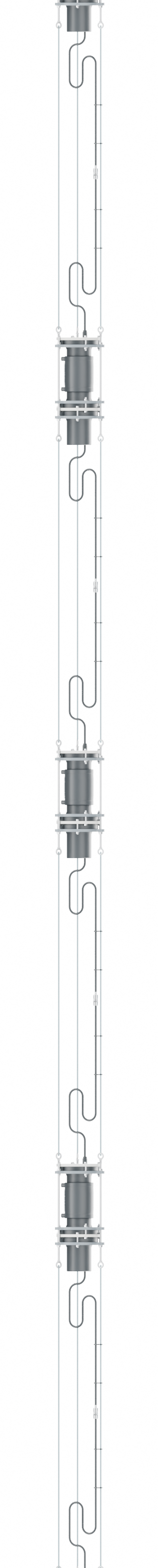

Ten-pod deployment example
The illustration shows ten individually sold pods combined in a vertical string below a B200-5 buoy. Each pod costs €850 and includes a temperature sensor. The buoy and optional sensor packs are separate.
