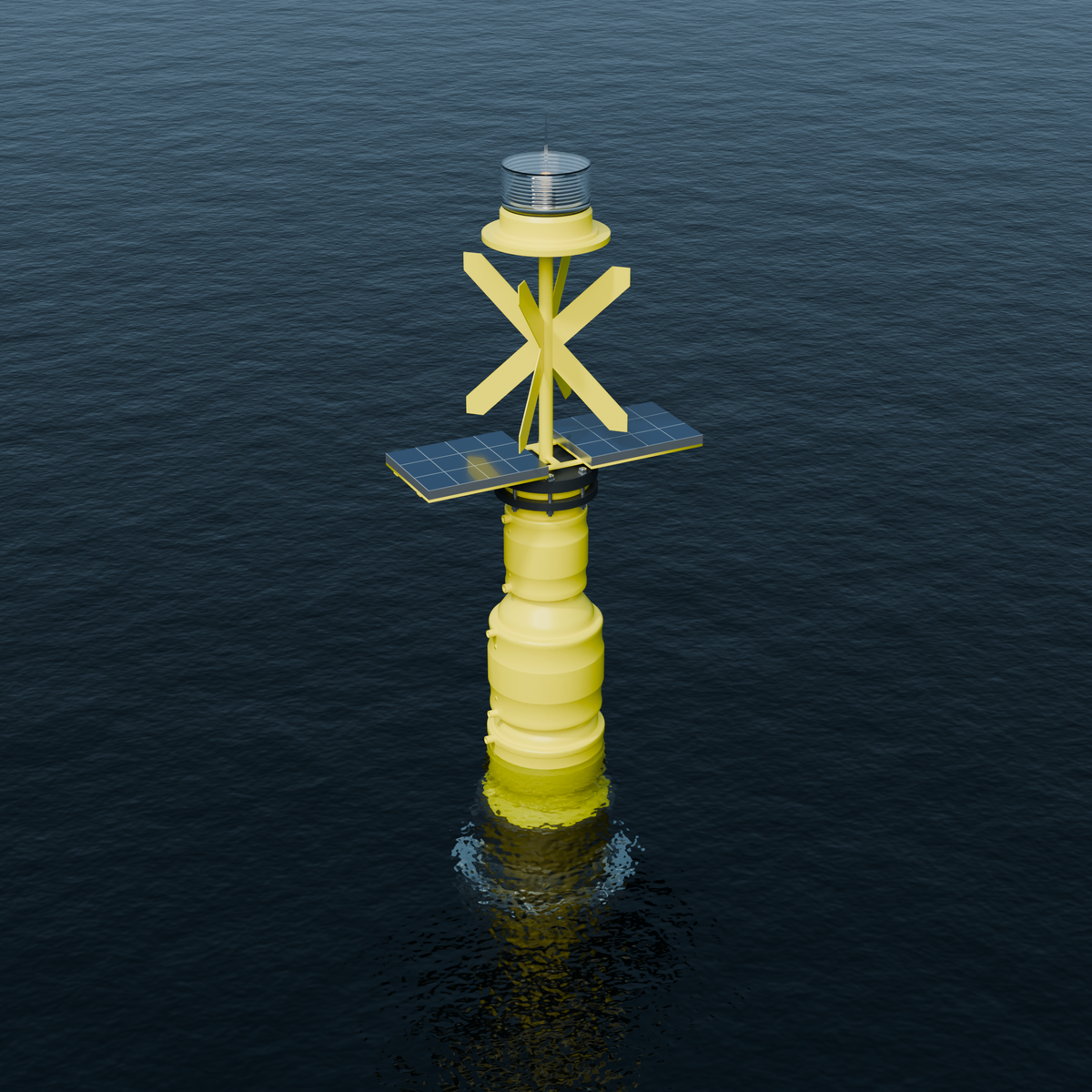

• B600-10 buoy with lowered solar panels, a cross and a navigation light with a clear lens.

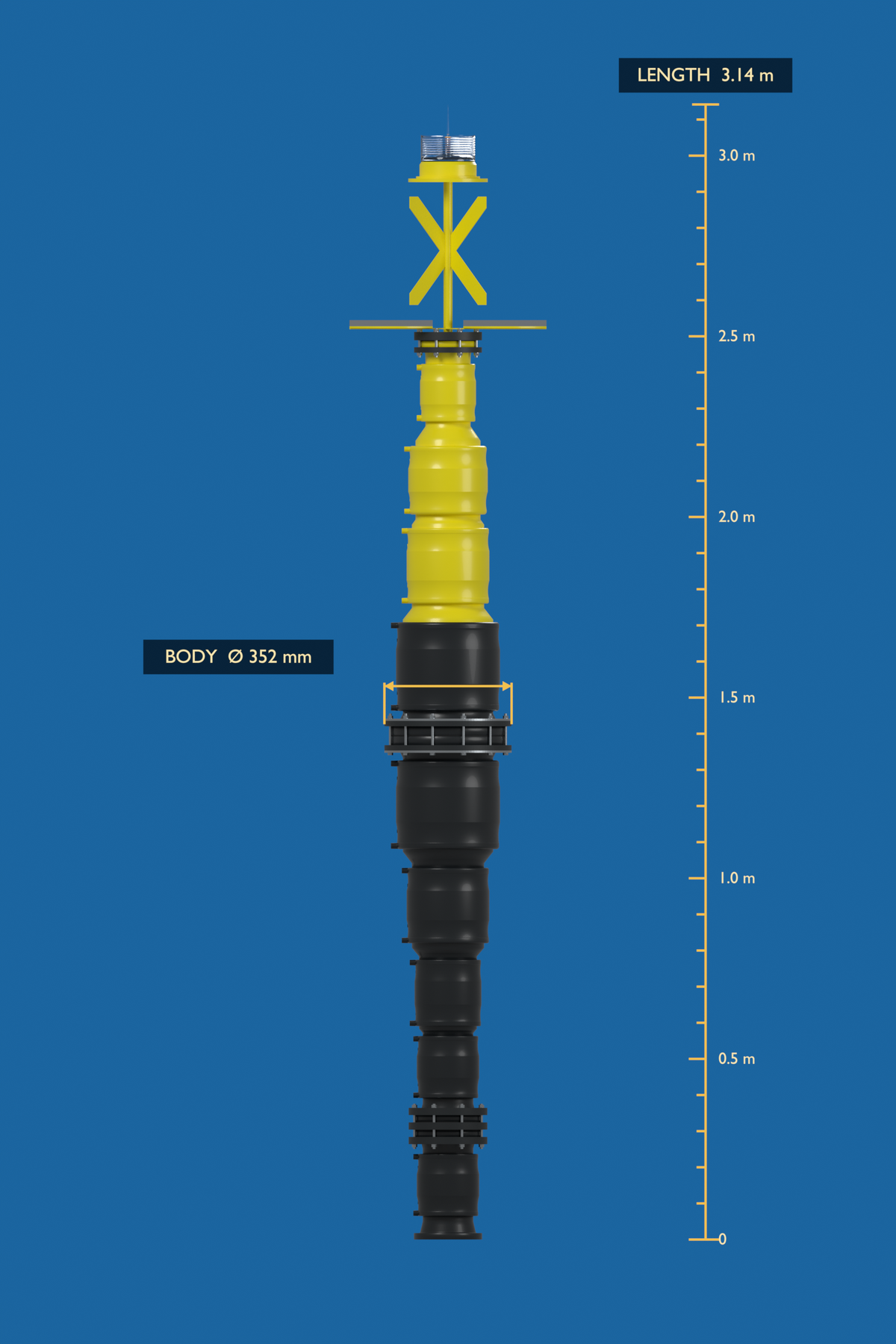

  • B600-10 side catalogue view with lowered solar panels, 3.14 m overall length and 352 mm body diameter.
1 2

Elements Works

netH₂O B600-10 — Solar Water-Quality Buoy

netH₂O B600-10 — Solar Water-Quality Buoy

€11,500.00 EUR
€11,500.00 EUR
Sale Sold out

Contact us through the web contact widget if you need information, customization or pricing for special applications or volume purchases, or if the standard purchase process does not work for you for any reason.

The netH₂O B600-10 is a solar-powered buoy for water-quality monitoring in coastal waters, ports, aquaculture and research sites. It combines approximately 600 Wh of battery capacity with two 5 W solar panels, Iridium satellite and cellular connectivity* and access to the Sensorica Data Platform.

Six LiFePO4 batteries provide stored energy for the sensors and control system. Solar power supports continued operation between service intervals. The service interval depends on available solar energy, the installed sensors, sampling frequency and the transmission schedule.

From water measurements to cloud data

The base platform includes an onboard data logger, automatic cloud upload, cloud storage and access to stored data through the Sensorica Data Platform. Sampling and transmission schedules can be adjusted to support local buffering and periodic data transfer.

  • Iridium satellite and cellular connectivity*, with GPS positioning.
  • Temperature sensor and inertial measurement unit (IMU) for buoy status and motion.
  • Water-quality sensor integration through a shared RS-485 / Modbus connection.

Current configuration

The light and cross sit above the two solar panels.

Battery capacity Approximately 600 Wh · 6 LiFePO4 batteries
Solar power 10 W nominal · 2 × 5 W panels
Overall length as illustrated Approximately 3.14 m
Maximum body diameter 352 mm at the main joint
Width across solar panels 545 mm
Estimated dry weight (excluding ballast) Approximately 63 kg, including batteries
Ballast (separate) Approximately 13.3 kg

Dimensions and estimated dry weight refer to the illustrated assembly. Final weight and operating waterline depend on the installed equipment.

Choose the measurements for your site

Application packs are available separately for dissolved oxygen, conductivity and salinity, chlorophyll-a, turbidity and cyanobacteria.

Images show the current design.

* Cellular and satellite data subscription quoted separately
